單相電與三相電的區別及互感器應用場景
The difference between single-phase and three-phase electricity and the application scenarios of transformers
一、單相電與三相電的基本概念
1. Basic concepts of single-phase and three-phase electricity
1. 單相電（Single-Phase Power）
1. Single-Phase Power
- 由一根相線（火線）和一根中性線（零線）組成
- Consists of a phase line (live line) and a neutral line (zero line)
- 標準電壓：220V（中國居民用電）
- Standard voltage: 220V (Chinese residential electricity)
- 特點：結構簡單，適用于低功率電器，如家用照明、小型電器等
- Features: Simple structure, suitable for low-power electrical appliances, such as household lighting, small electrical appliances, etc.
2. 三相電（Three-Phase Power）
2. Three-Phase Power
- 由三根相線（相位差120°）組成，可帶中性線（三相四線制）
- Consists of three phase wires (phase difference 120°), with neutral wire (three-phase four-wire system)
- 標準電壓：380V（中國工業用電）
- Standard voltage: 380V (China industrial electricity)
- 特點：功率傳輸穩定，適用于大功率設備，如電機、工業機械等
- Features: Stable power transmission, suitable for high-power equipment such as motors, industrial machinery, etc.
單相電與三相電的主要區別
The main differences between single-phase electricity and three-phase electricity
對比項
Comparison Items | 單項電
Single phase electricity | 三相電
Three-phase electricity |
組成
composition | 1相+1零線
1 phase + 1 neutral line | 3相線（±120°相位差）
3-phase line (±120° phase difference) |
電壓
Voltage | 220V | 380V |
功率
power | 適用小負載
Suitable for small loads | 較高 適用于大負載
Higher for heavy loads |
應用場景
Application Scenario | 家用
Home | 工廠 大型設備
Factory large equipment |
傳輸效率
Transmission efficiency | 低 | 更節能
More energy-efficient |
三、互感器在單相與三相系統中的應用
3. Application of Transformers in Single-Phase and Three-Phase Systems
1. 單相系統中的互感器應用
1. Application of transformers in single-phase systems
- 電能計量：單相電能表搭配電流互感器（CT），提高測量精度
- Electricity metering: Single-phase energy meter with current transformer (CT) to improve measurement accuracy
- 漏電保護：剩余電流互感器（RCD）檢測漏電流，保障用電安全
- Leakage protection: Residual current transformer (RCD) detects leakage current to ensure power safety
- 電流監測：單相CT用于監控負載電流，防止過載
- Current monitoring: Single-phase CT is used to monitor load current and prevent overload
- 電壓測量：單相電壓互感器（PT）用于電壓監測
- Voltage measurement: Single-phase voltage transformer (PT) for voltage monitoring
2. 三相系統中的互感器應用

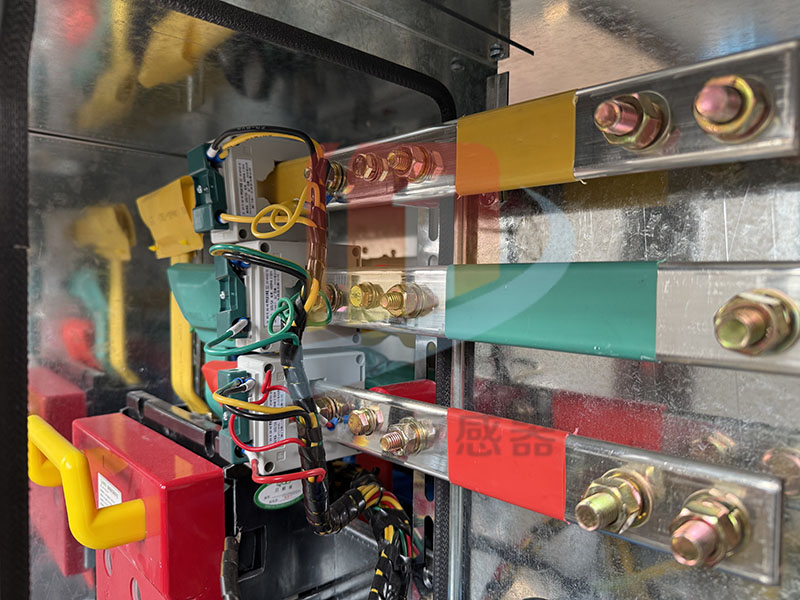

2. Application of transformers in three-phase systems
- 電能計量：三相CT+PT組合，用于工業電表高精度計量
- Electric energy measurement: three-phase CT+PT combination, used for high-precision measurement of industrial electric meters
- 電機保護：三相電流互感器監測電機運行狀態，防止過載或短路
- Motor protection: Three-phase current transformer monitors the motor operating status to prevent overload or short circuit
- 電力監控：三相PT用于電網電壓監測，確保電力質量
- Power monitoring: Three-phase PT is used for grid voltage monitoring to ensure power quality
- 無功補償：配合SVG/APFC裝置，優化功率因數
- Reactive power compensation: cooperate with SVG/APFC device to optimize power factor
四、互感器選型要點
4. Key points for transformer selection
因素
factor | 單相系統
Single-phase system | 三相系統
Three-phase system |
電流范圍
Current range | 5A-100A | 50A-5000A+ |
精度等級
Accuracy level | 0.5級、1級
0.5 level, 1 level | 0.2S級、0.5級
0.2S level, 0.5 level |
安裝方式
Installation | 導軌式、貫穿式
Guide rail type, through type | 套管式、母線式
Bushing type, busbar type |
防護等級
Protection level | IP20（室內）
IP20 (Indoor) | IP65（工業環境）
IP65 (industrial environment) |
五、總結
V. Conclusion
單相電和三相電在電壓、功率和應用場景上存在明顯差異，互感器作為關鍵測量與保護元件，需根據系統特點選擇合適的型號。在單相系統中，互感器主要用于電能計量和漏電保護；而在三相系統中，互感器則更多應用于工業電力監控、電機保護和電能管理。
There are obvious differences between single-phase and three-phase electricity in voltage, power and application scenarios. As a key measurement and protection component, the transformer needs to select the appropriate model according to the characteristics of the system. In a single-phase system, the transformer is mainly used for energy metering and leakage protection; in a three-phase system, the transformer is more used in industrial power monitoring, motor protection and power management.
作為專業的互感器生產廠家，我們提供適用于單相和三相系統的全系列互感器產品，滿足不同場景需求。如需技術咨詢或定制方案，歡迎聯系我們的工程師團隊！
As a professional transformer manufacturer, we provide a full range of transformer products suitable for single-phase and three-phase systems to meet the needs of different scenarios. If you need technical consultation or customized solutions, please contact our engineering team!
