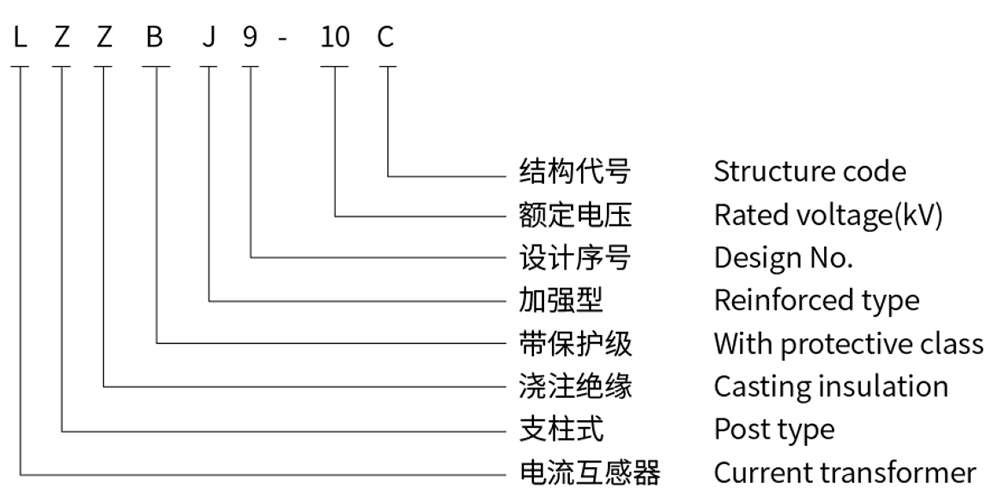

型號含義Type description
技術參數Technical data
額定一次電流 Rated primary current(A) | 準確級組合 ACcuracy classes combination | 額定二次輸出Rated secondary output(VA) | 短時熱電流(kA/s) Rated short-time thermal current kA/s | 動額定電流 Rated dynamic current(kA) | ||
3.2S(0.2) | 0.5S(0.5) | 10P10 | ||||
5 |
0.2S/10P10 0.5S/10P10 0.2/10P10 0.5/10P10 |
10 |
10 |
15 | 0.3 | 0.75 |
10 | 0.6 | 1.5 | ||||
15 | 0.9 | 2.25 | ||||
20 | 1.2 | 3 | ||||
25 | 1.5 | 3.75 | ||||
30 | 1.8 | 4.5 | ||||
40 | 2.4 | 6 | ||||
50 | 3 | 7.5 | ||||
75 | 4.5 | 11.25 | ||||
100 | 6 | 15 | ||||
150 | 9 | 22.5 | ||||
200 | 12 | 30 | ||||
300 | 18 | 45 | ||||
400 | 24 | 60 | ||||
500 | 30 | 75 | ||||
600 | 36 | 90 | ||||
800 | 48 | 120 | ||||
1000 | 60 | 130 | ||||
1200 | ||||||
1500 |
80 |
160 | ||||
2000 | ||||||
2500 | ||||||
3000 | ||||||
外形及安裝尺寸Overall dimension drawing
接線板Terminal Block
