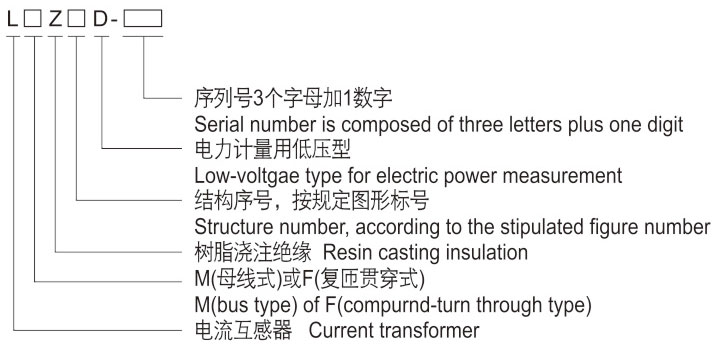

型號含義Type description
技術參數Technical data
| 型號 Ttype | 額定一次電流 Accuracy classes combination (A) | 頡定二次電流 Rared prinmarty current lin (A) | 額定二次負荷 Secondary load (VA)0.2s | 功率因數 Power factor (coso) | 穿心匝教 Cross-core turm number | 備注 Notes |
| LFZ1D-ZDH1 | 5-60 | 5 | 5/2.5 | 0.8 | 1 | 圖1 Figure 1 |
| LMZ1D-ZDH2 | 75-150 | 5 | 5/2.5 | 0.8 | 1 | 圖2 Figure 2 |
| LMZ2D-ZDH3 | 200-500 | 5 | 5/2.5 | 0.8 | 1 | 圖3 Figure 3 |
| LMZ3D-ZDH4 | 600 | 5 | 10/3.75 | 0.8 | 1 | 圖4 Figure 4 |
| LMZ4D-ZDH5 | 800-1500 | 5 | 10/3.75 | 0.8 | 1 | 圖5 Figure 5 |

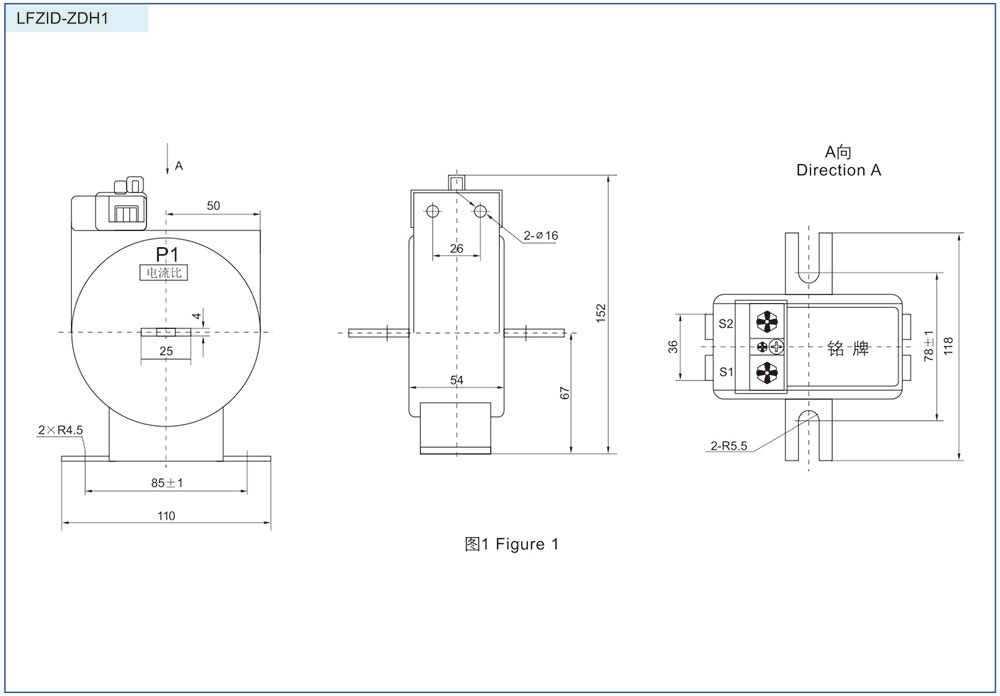

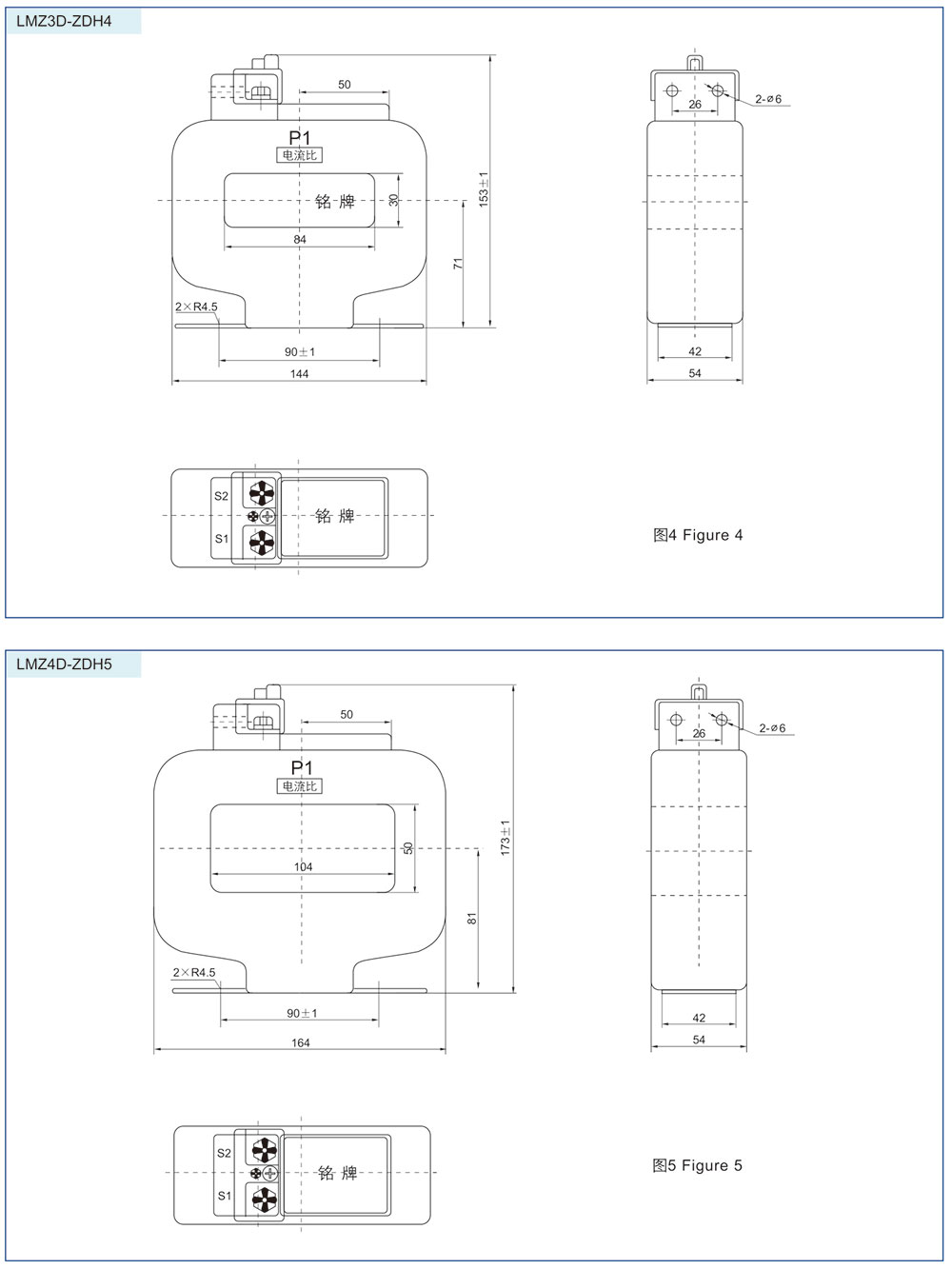

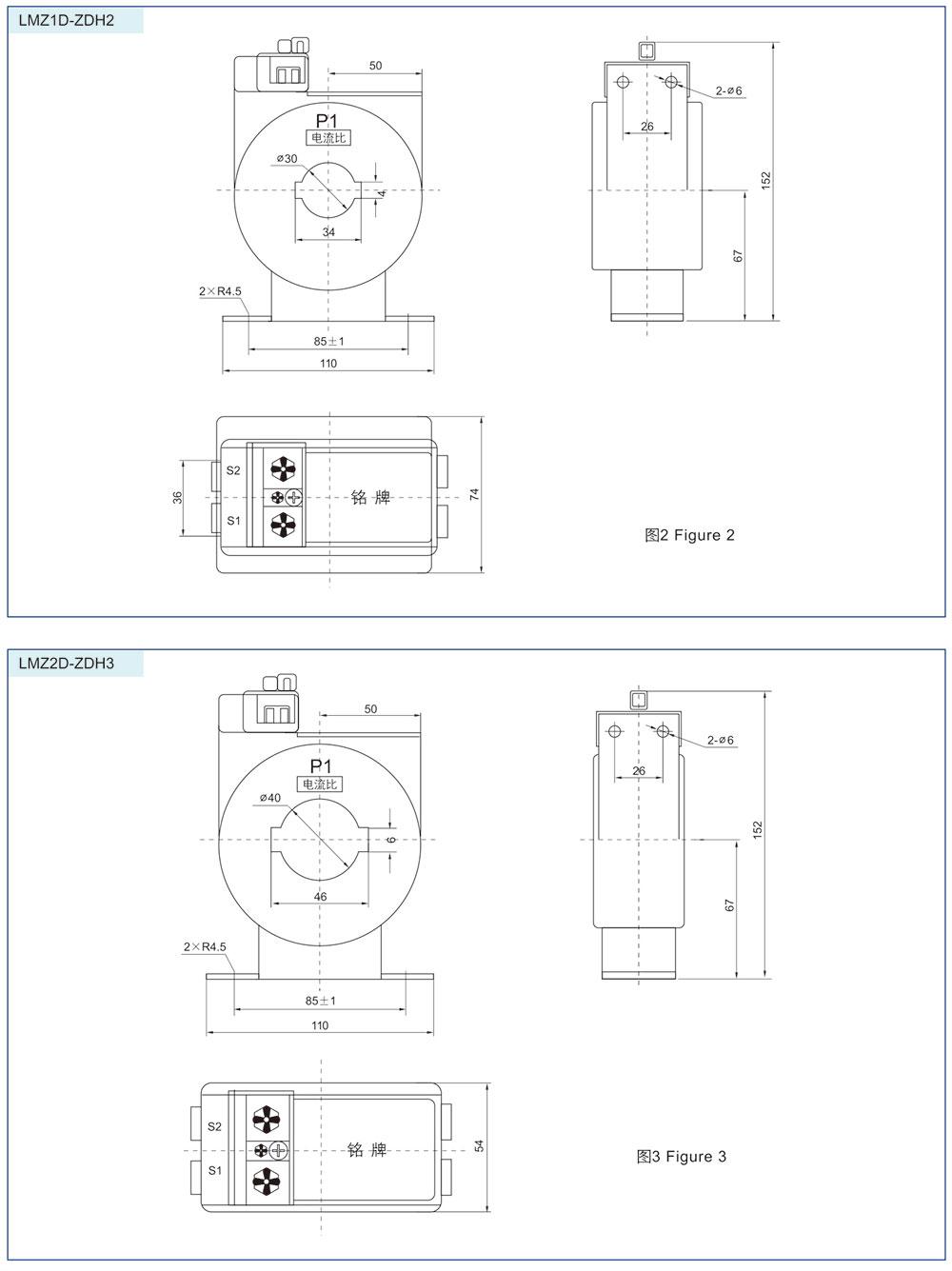

外形及安裝尺寸Overall dimension drawing
