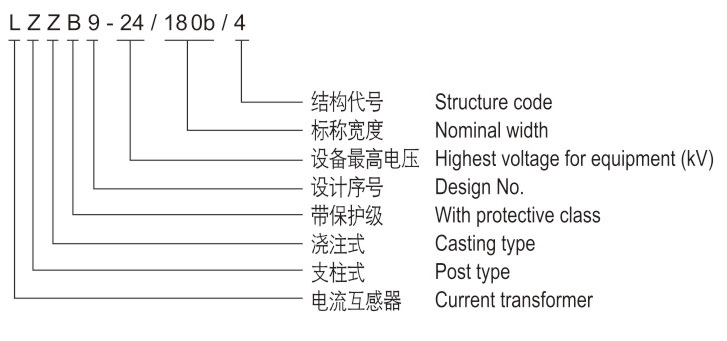

型號含義 Type description
技術(shù)參數(shù)Technical data
額定一次電流 Rated primary current(A) | 準確級組合 Accuracy classes combination | 額定二次輸出 Rated secondary output(VA) | 短時熱電流(kA/s) Rated short-time thermal current kA/s | 動穩(wěn)定電流 Rated dynamic current(kA) | |||
0.2(S) | 0.5(S) | 10P10 | 10P15 | ||||
20-150 |
0.2(S)/0.2 0.2(S)/0.5 0.2(S)/10P10 0.5(S)/10P10 0.2(S)/10P15 0.5(S)/10P15 |
10 |
15 |
15 |
15 | 0.0611n | 0.1511n |
200 | 12 | 30 | |||||
300-500 | 18 | 45 | |||||
600、800 |
15 |
20 |
20 |
15 | 36 | 90 | |
1000、1200 | 60 | 130 | |||||

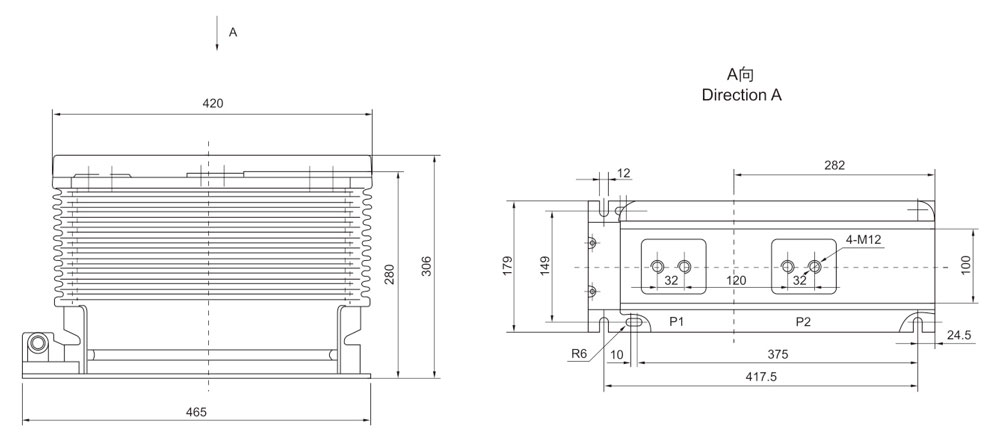

外形及安裝尺寸0verall dimension drawing
