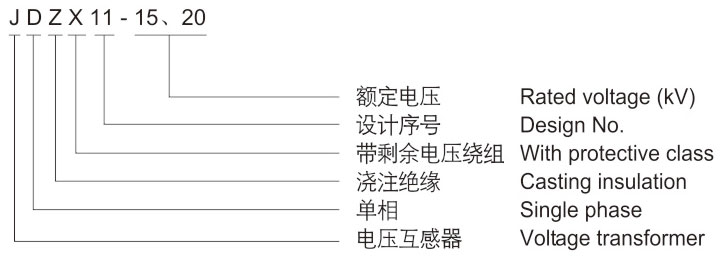

型號含義Type description
技術參數(shù)Technical data
型號 Type | 額定電壓比 Rated voltage ration (kV) | 額定二次輸出 Rated secondary output(VA) | 極限輸出 Max.output (VA) | 額定絕緣水平 Rated insulation level (kV) | 接線圖 Wiring diagram | ||||||
0.2 | 0.5 | 1 | 0.2/0.2 | 0.2/0.5 | 0.5/0.5 | 6P | |||||
JDZX11-15 | 15//3/0.1//3/0.1/3 |
30 |
80 |
150 |
1 | / | / |
100 |
400 | 18/55/105 | 圖 1 Fiagure 1 |
JDZX11-20 | 20//3/0.1//3/0.1/3 | 24/65/125 | |||||||||
JDZX11-15 | 15//3/0.11/3/0.11/3/0.1/3 | / | / | / | 15/15 | 20/20 | 30/30 | 300/300 | 18/55/105 | 圖2 Fiagure 2 | |
JDZX11-20 | 20//3/0.1//3/0.1//3/0.1/3 | 24/65/125 | |||||||||

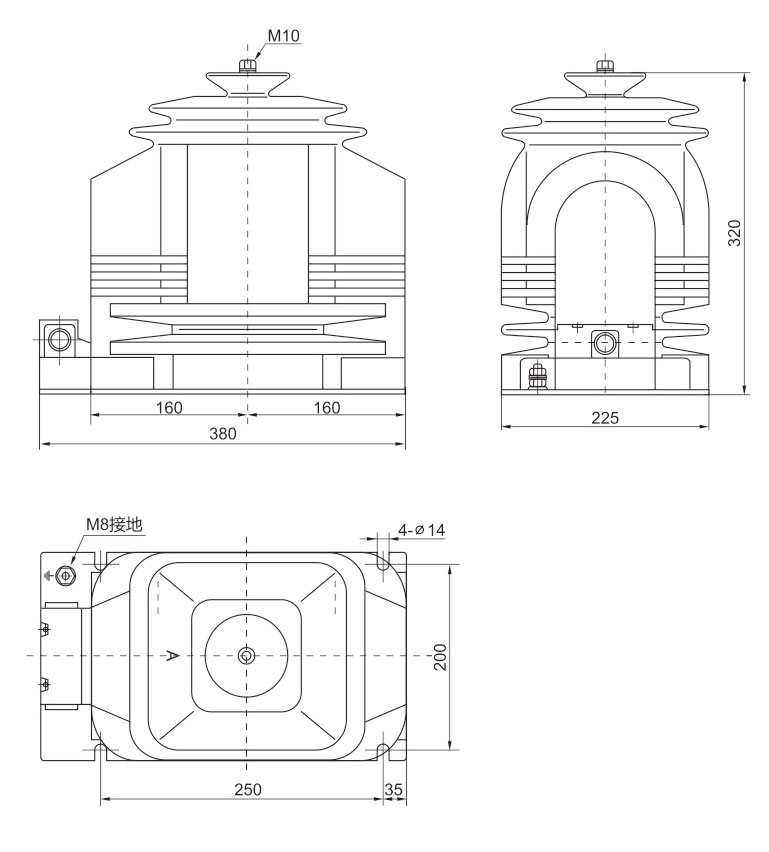

外形及安裝尺寸Overall dimension drawing

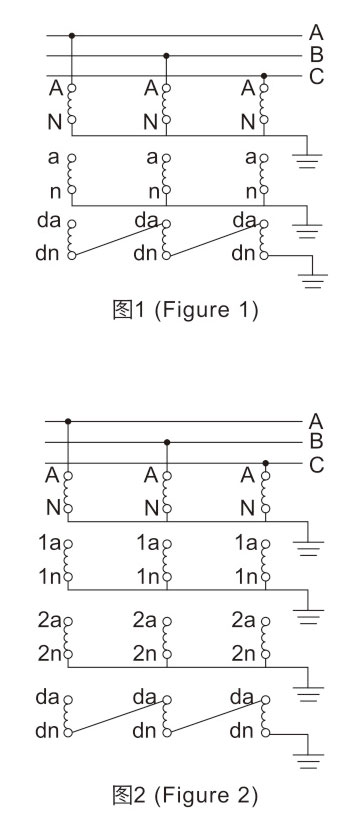

接線圖Wiring diagram
