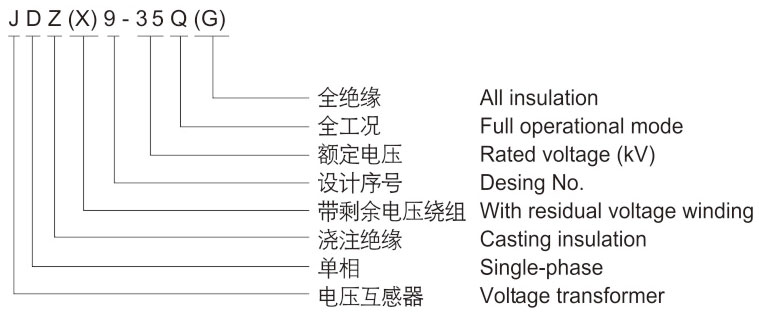

型號含義Type description
技術參數Technical data
型號 Type | 額定電壓比 Rated voltage ration (V) | Rated secondary output(VA) | 極限輸出 Max.output (VA) | 額定絕緣水平 Rated insulation level (kV) | 備注 Notes | 接線圖 Wiring diagram | ||||||
0.2 | 0.5 | 1級 | 3級 | 0.2/0.2 0.2/0.5 | 0.5/0.5 | 6P | ||||||
JDZ9-35Q | 35000/100 |
60 |
120 |
240 |
600 | / | / | / |
800 |
40.5/95/200 |
等同 "VKV" Same "VKV" | 圖1-圖2 Fiagure 1-2 |
35000/100/100 | / | / | 1 | / | 30/30 | 40/40 | / | 500/500 | 圖3-圖4 Fiagure 3-4 | |||
JDZX9-35G | 35000/100/100 √3/ √3 3 |
30 |
90 |
180 |
500 | / | / |
100 |
600 | 圖5 Fiagure 5 圖6 Fiagure 6 | ||
35000/100/100/100 √3 / √3/ √3/ 3 | / | / | 1 | / | 15/15 15/20 | 45/45 | 100 | 300/300 | ||||

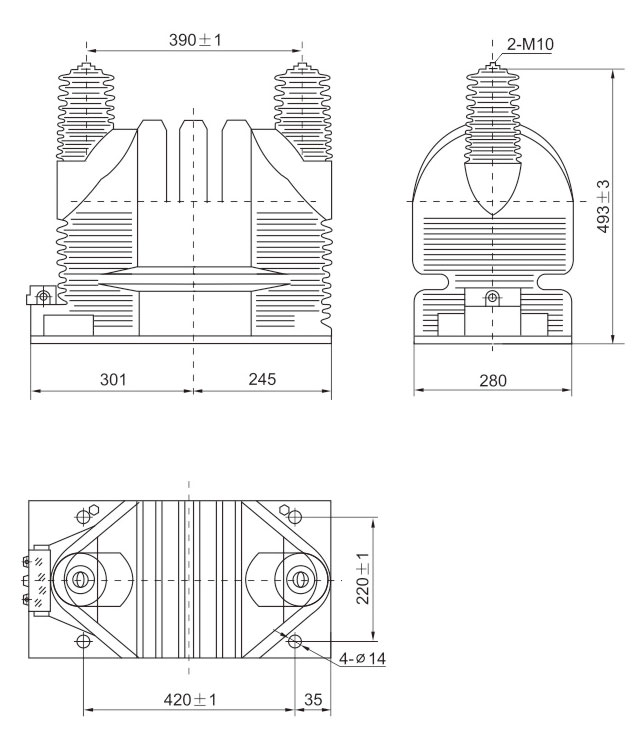

外形及安裝尺寸Overall dimension drawing

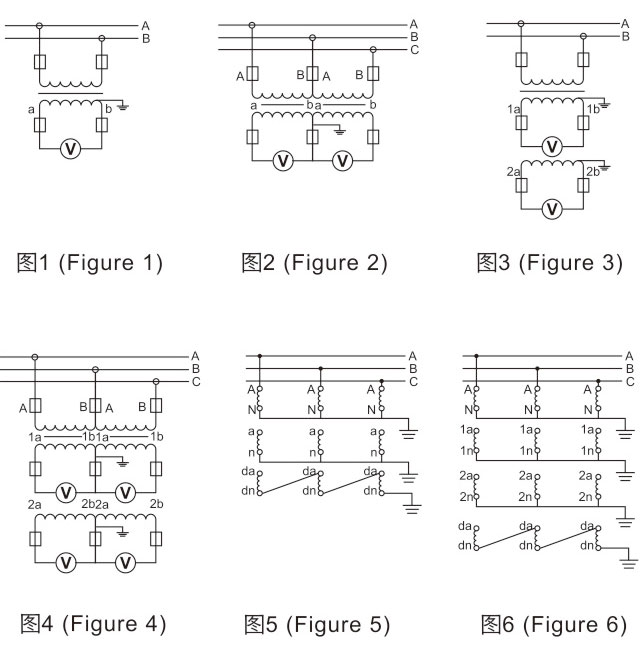

接線圖Wiring diagram
