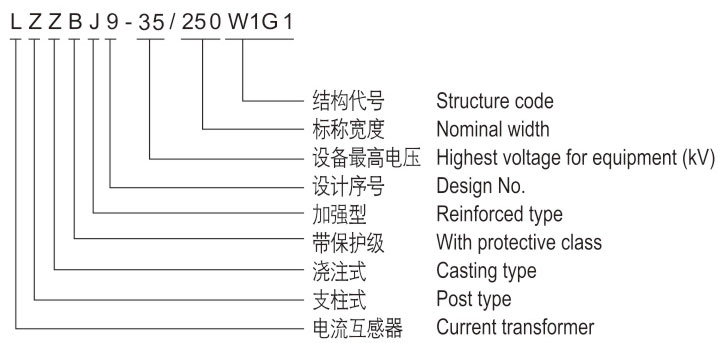

型號含義 Type description
技術(shù)參數(shù)Technical data
額定一次電流 Rated primary current(A) | 準(zhǔn)確級組合 Accuracy classes combination | 額定二次輸出 Rated secondary output(VA) | 額定熱電流 Short-time thermal current(kA/S) | 額定動穩(wěn)定電流 Rated dynamic current (kA) | ||
0.2 | 0.5 | 5P20 | ||||
20-100 | 0.2/0.2 0.2/0.5 0.5/0.5 0.2/5P20 0.5/5P20 |
10 |
15 |
15 | 0.0611n | 0.1511n |
150-200 | 9 | 22.5 | ||||
300-500 | 18 | 45 | ||||
600-1250 | 15 | 30 | 20 | 36 | 90 | |
1500-2000 | 20 | 40 | 30 | 80 | 160 | |
2500 | 20 | 40 | 20 | |||

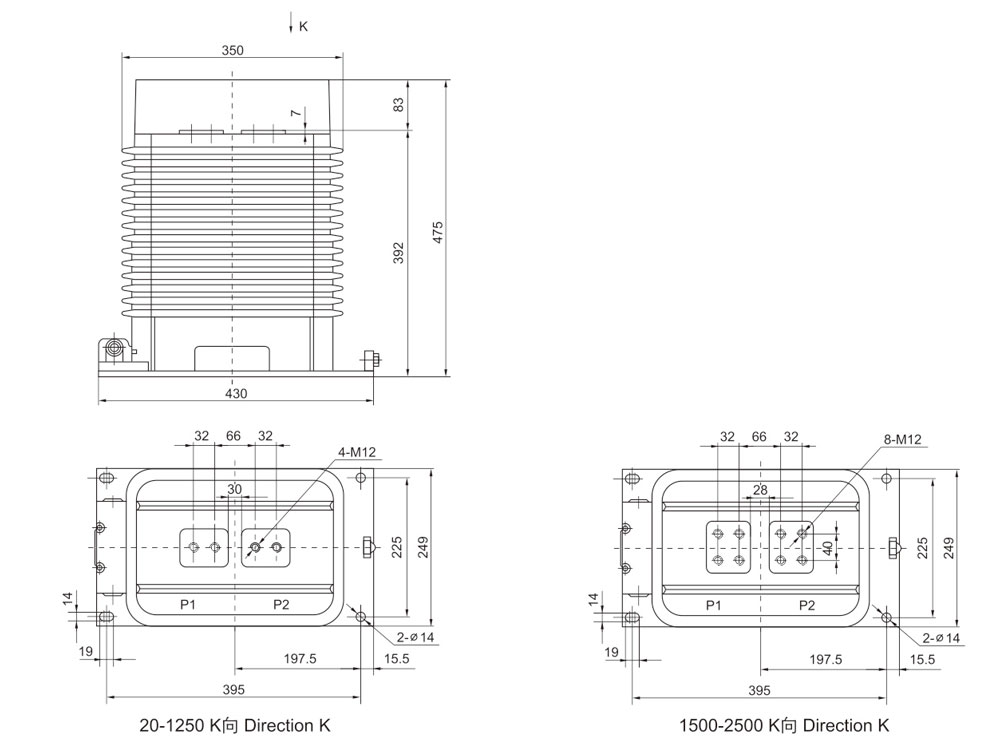

外形及安裝尺寸0verall dimension drawing
